Methanol Generator

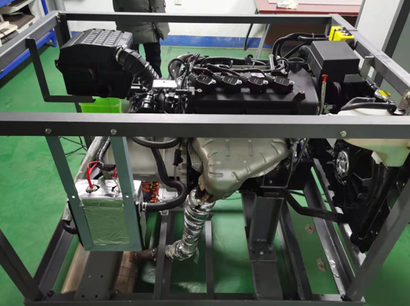

The methanol internal combustion engine power generation module consists of a methanol tank, a methanol internal combustion engine, an AC generator, an AC/DC rectifier, a radiator, a lubrication system, etc. Similar to a diesel generator, the methanol internal combustion engine power generation module uses methanol as an energy source. Through the Carnot cycle of the internal combustion engine, it drives the crankshaft connecting rod, outputs power, and drives the generator connected to the main shaft. The generated electricity is three-phase AC 380V. The 380V AC is rectified and the output is controlled to be a rated DC of 336VDC.

Product Advantages

Efficient operation, Flexible adjustment

The methanol generator supports a power range of 5-65kW, and the optimal efficient working range is 15-30kW. The output power can be flexibly adjusted according to demand to meet the power demand of different scenarios.

High conversion efficiency

The efficiency of the power generation module is 30%-40%, and the conversion efficiency of the AC rectifier AC/DC is as high as 95%-98%, ensuring efficient use of energy and providing stable DC voltage output (280V-420V adjustable).

Energy saving, Environmental protection

Only about 0.5kg of methanol is needed for every kilowatt-hour of electricity consumed, and the converted electricity price is about 1.2-1.5 yuan/kWh, which is more economical than traditional fuel power generation.

Intelligent control, Easy operation

Equipped with a dedicated ECU control system, it transmits real-time system data through the CAN bus to support remote control and optimized operation. In addition, the system supports the operating voltage of external devices (24V DC), improving applicability and ease of use.
